Dove Frameset
Frames & Forks
Framesets Dove Frameset
visa maestro mastercard klarna
• Products in stock are shipped in 24 hours to 7 working days.

All aftermarket frames are available with the full range of the Volcano Steering line.

Choose to refresh your setup to the max and save 25% from individual parts purchase.

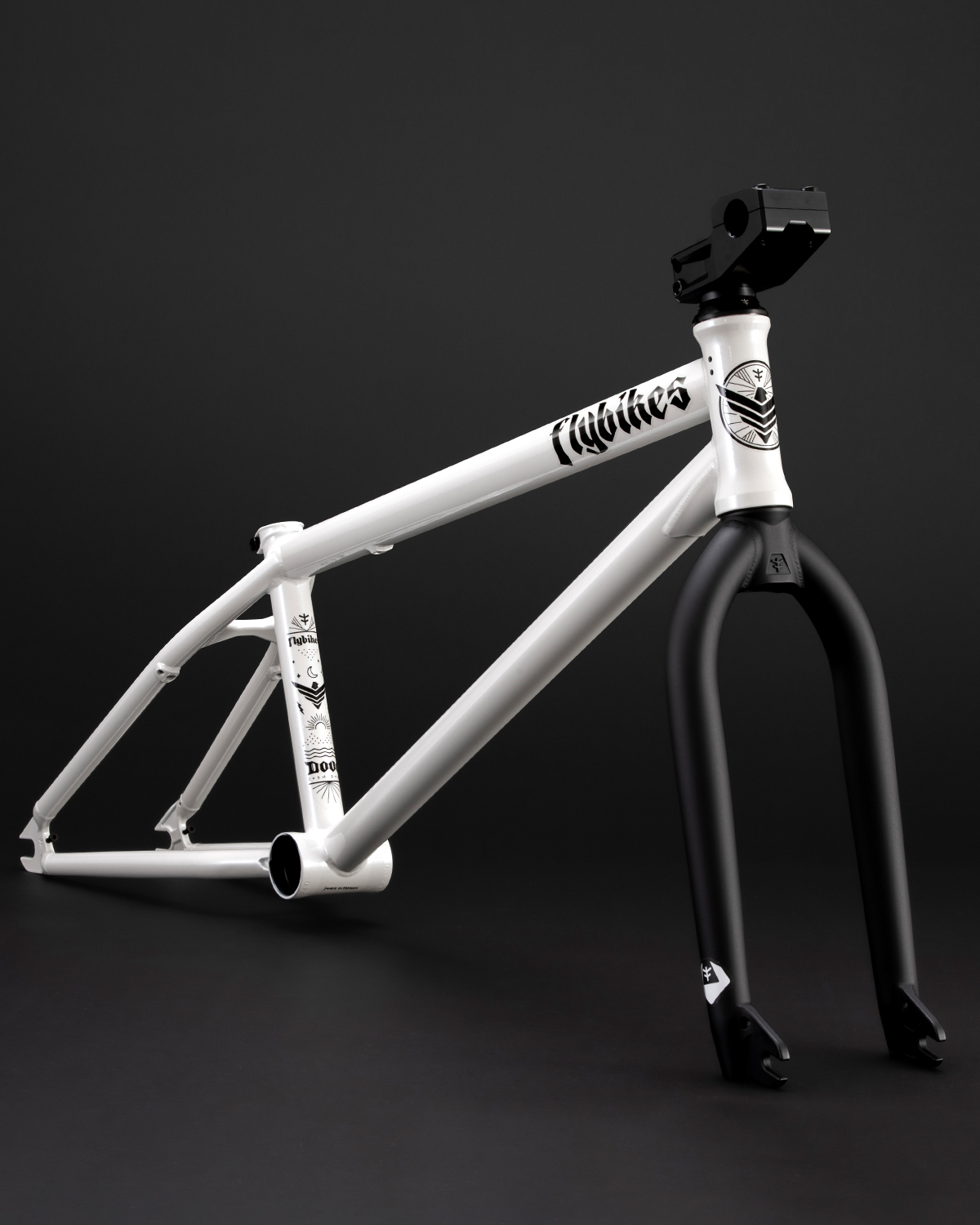

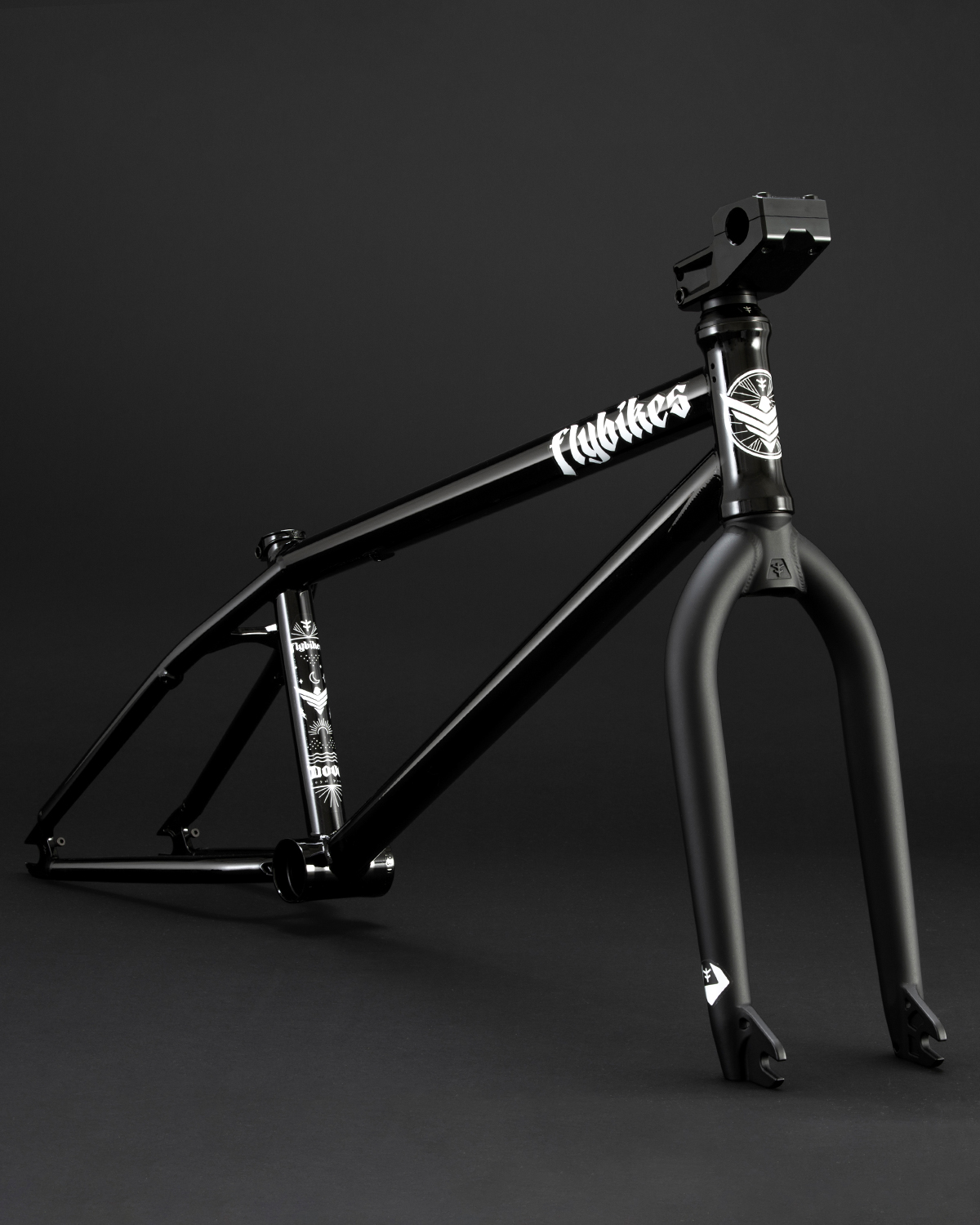

The Dove Frameset includes: Dove Frame (Josh Dove signature), Volcano Forks in 30 or 33mm Offset, Volcano Stem 25M, and Volcano 15 Headset.

• Dove Frame, Volcano Forks, and Volcano Stem come with a Lifetime Warranty.
• EBS Brake kit NOT included.
• Replacement stickers included.

SPECIFICATIONS

Dove Frameset Specs

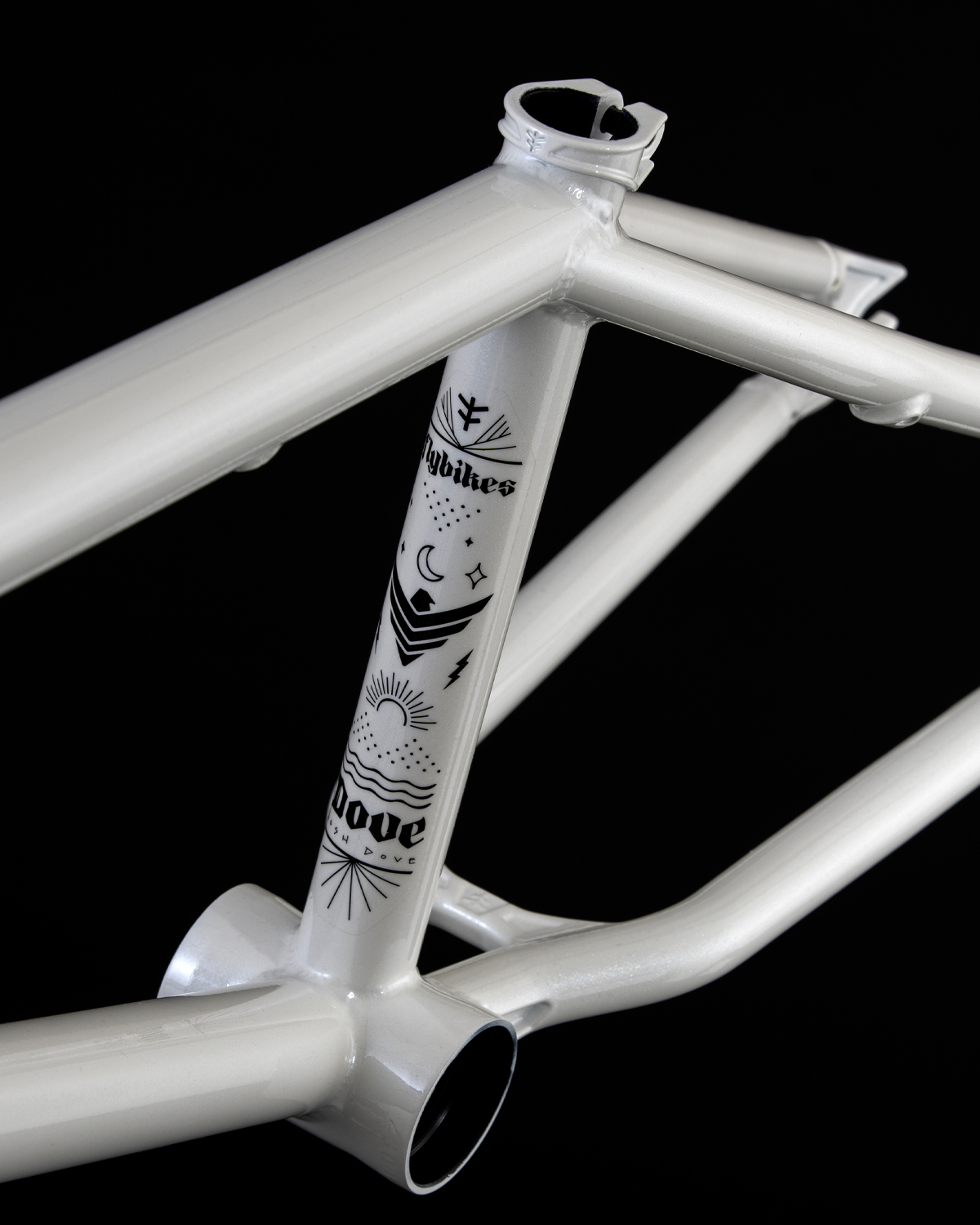

  • Dove Frame
  • Tubing Material
    4130 CrMo / Sanko Triple Butted
  • Headtube Material
    CNC Machined / 4130 CrMo / Heat Treated
  • Bottom Bracket
    CNC Machined / 4130 CrMo / Heat Treated / Mid BB

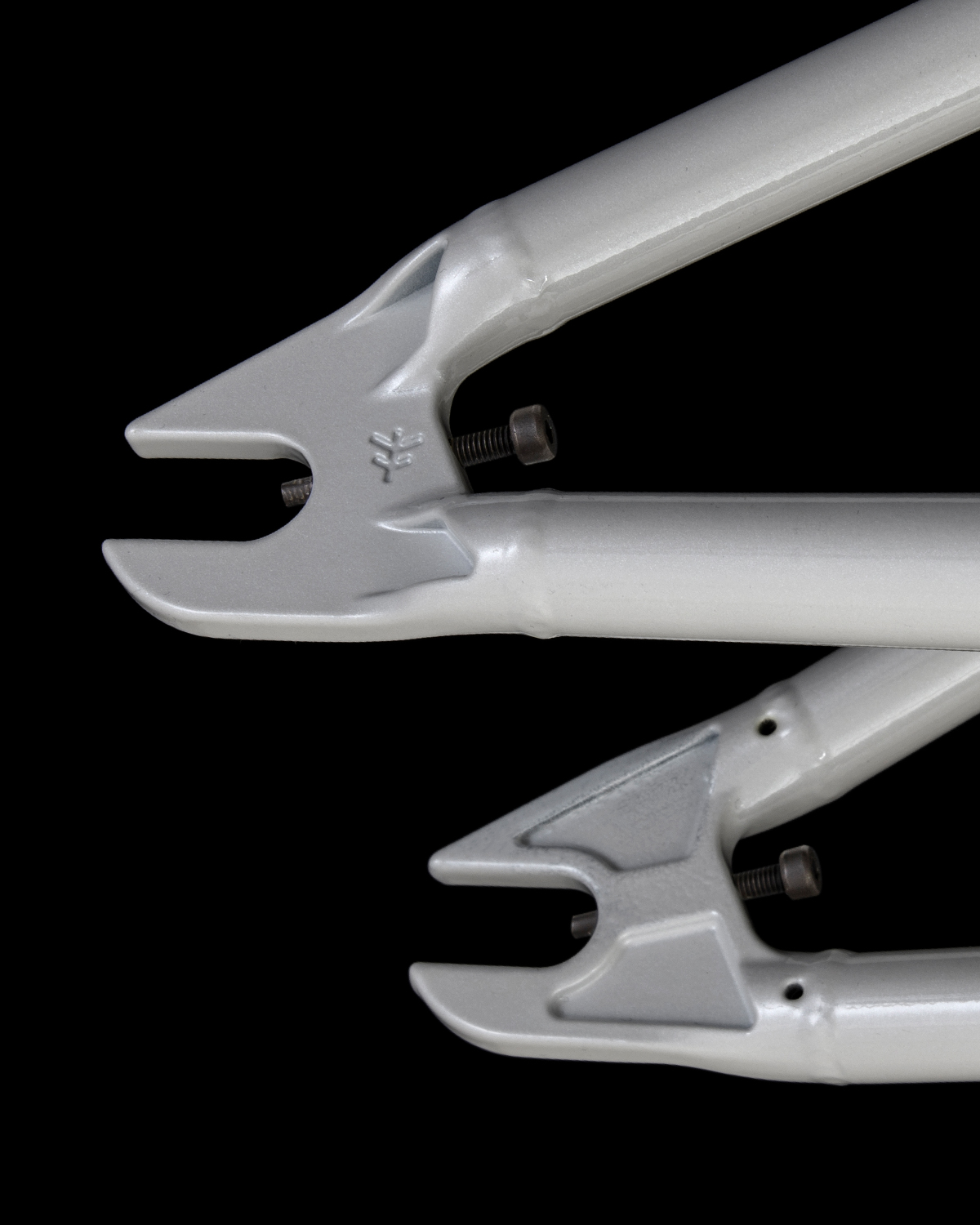

  • Dropouts Material
    Invest Casting / 4130 CrMo / Heat Treated
  • Seat Clamp Material
    Invest Casting / 4130 CrMo / Heat Treated

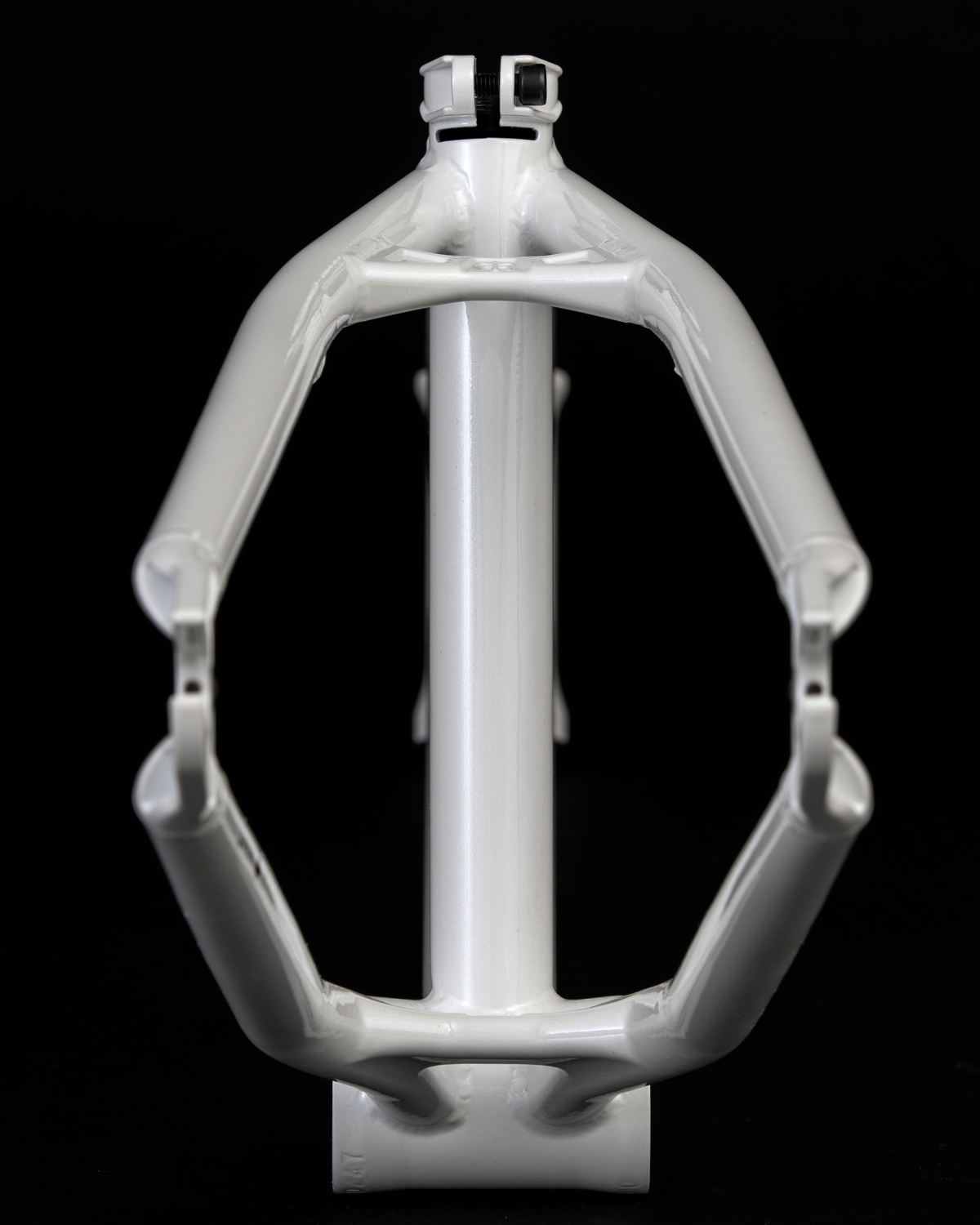

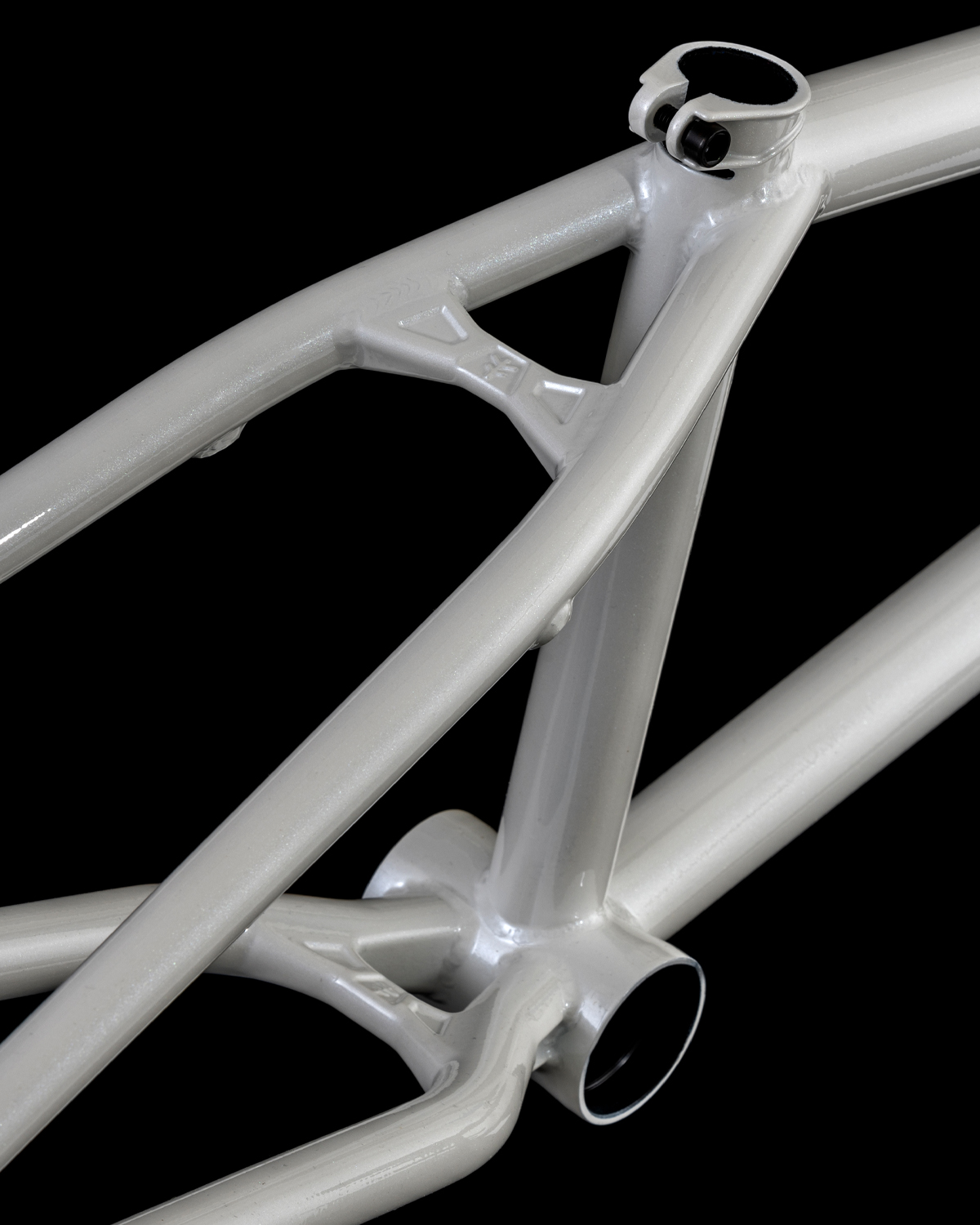

  • Seatstays Bridge Material
    Invest Casting / 4130 CrMo / Heat Treated
  • Gusset Material
    Laser Cut / 4130 CrMo / Heat Treated
  • Top Tube
    20.5" / 21"/ 21.5"
  • Head Tube
    13.6" version: 74.5º

    13.2" version: 75º
  • Seat Tube
    71º
  • Rear End
    13.6" & 13.2" Slammed
  • Standover
    13.6" version: 8.75"

    13.2" version: 8.5"
  • Bottom Bracket Height
    11.5"
  • Head Tube Height
    113 mm / 4.45"
  • Brake System
    EBS / Seatstays
  • Weight 21"
    2.530 gr. / 5.56 lb.

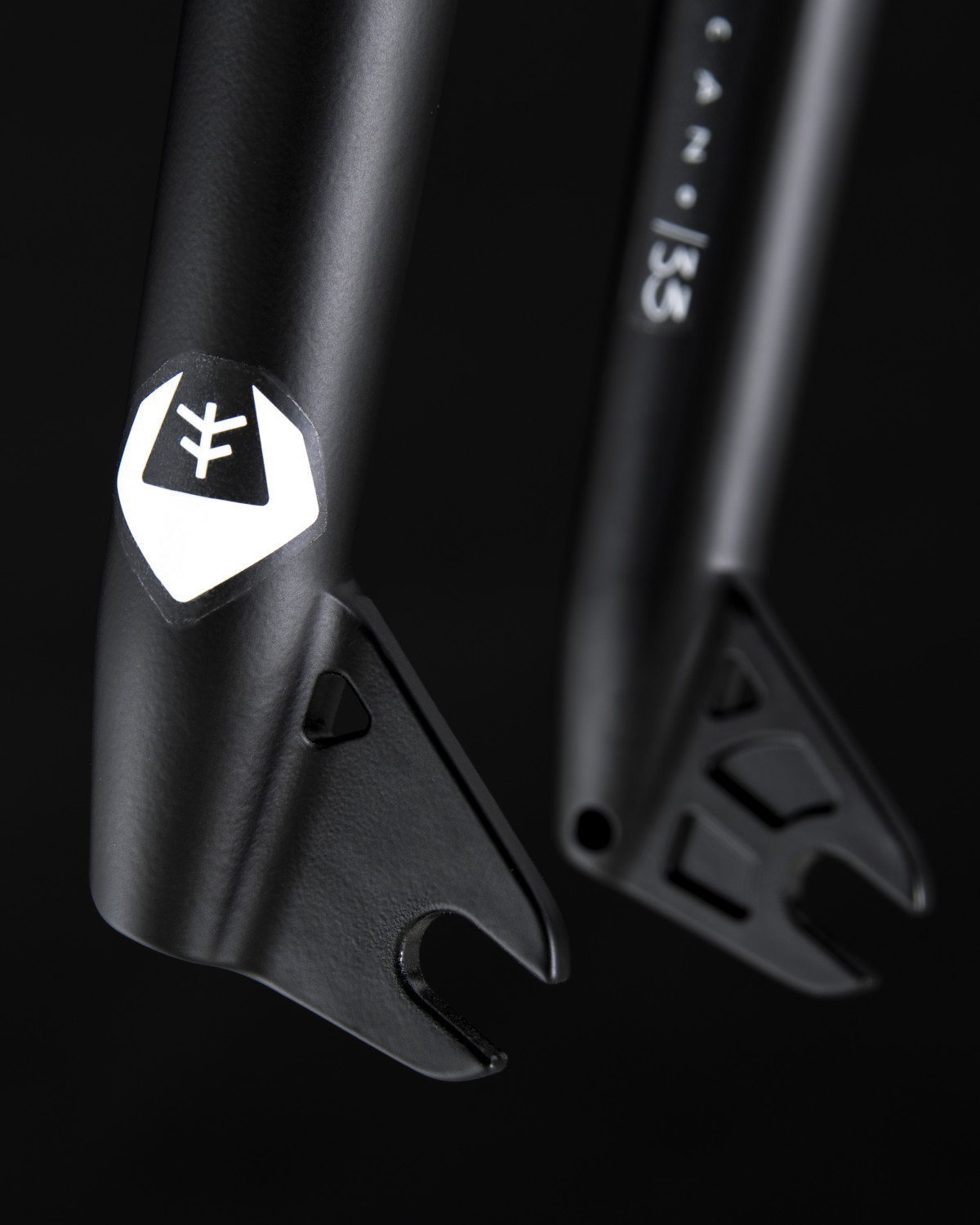

  • Volcano Forks
  • Legs Material
    4130 CrMo / Seamless / Sanko Triple Butted
  • Dropouts Material
    Invest Casting / 4130 CrMo
  • Steer Tube Material
    CNC Machined / 4130 CrMo
  • Treatment
    Full Post Welding Heat Treated
  • Top Bolt Material
    CNC Machined / 7075 T6 Aluminum
  • Offset
    28mm
  • Weight
    1.049g / 2.31 lb (Top bolt included)

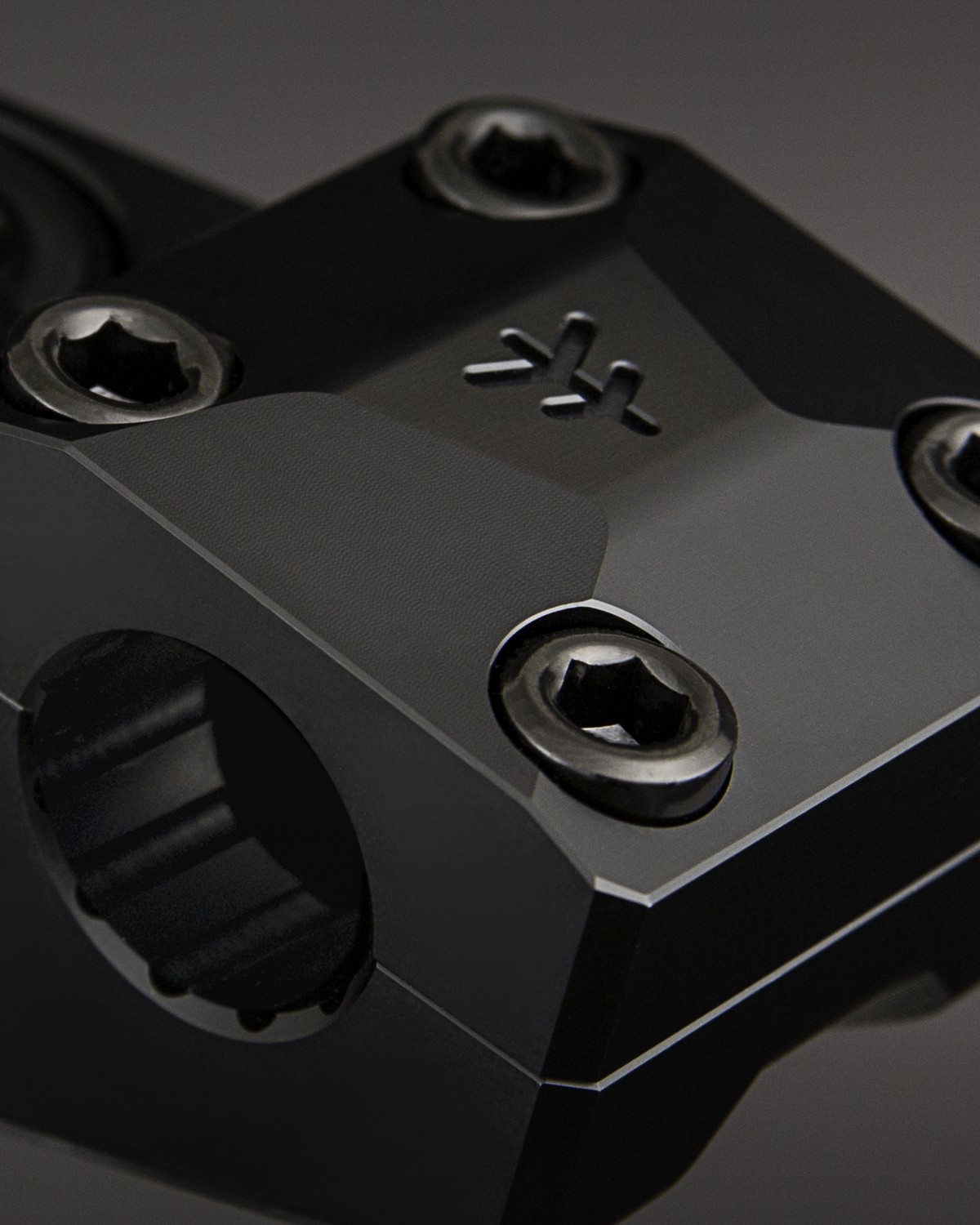

  • Volcano 25 Stem
  • Body Material
    CNC Machined / 6061-T6 Aluminum
  • Bolts Material
    4130 CrMo / Heat Treated
  • Rise
    25 mm
  • Reach
    48 mm
  • Width
    50 mm
  • Weight
    366 g / 12.9 oz
  • Volcano Headset
  • Cup Material
    6061-T6 Aluminum CNC Machined
  • Spacer Material
    6061-T6 Aluminum CNC machined
  • Top Cap Height
    15mm I From Top of Bearing to Top of Cap
  • Bearings
    Fly designed precision bearings
  • Weight
    65 grs / 2.2 Oz
