Sierra Frame

Frames & Forks

Frames Sierra Frame

visa

maestro

mastercard

klarna

• Products in stock are shipped in 24 hours to 7 working days.

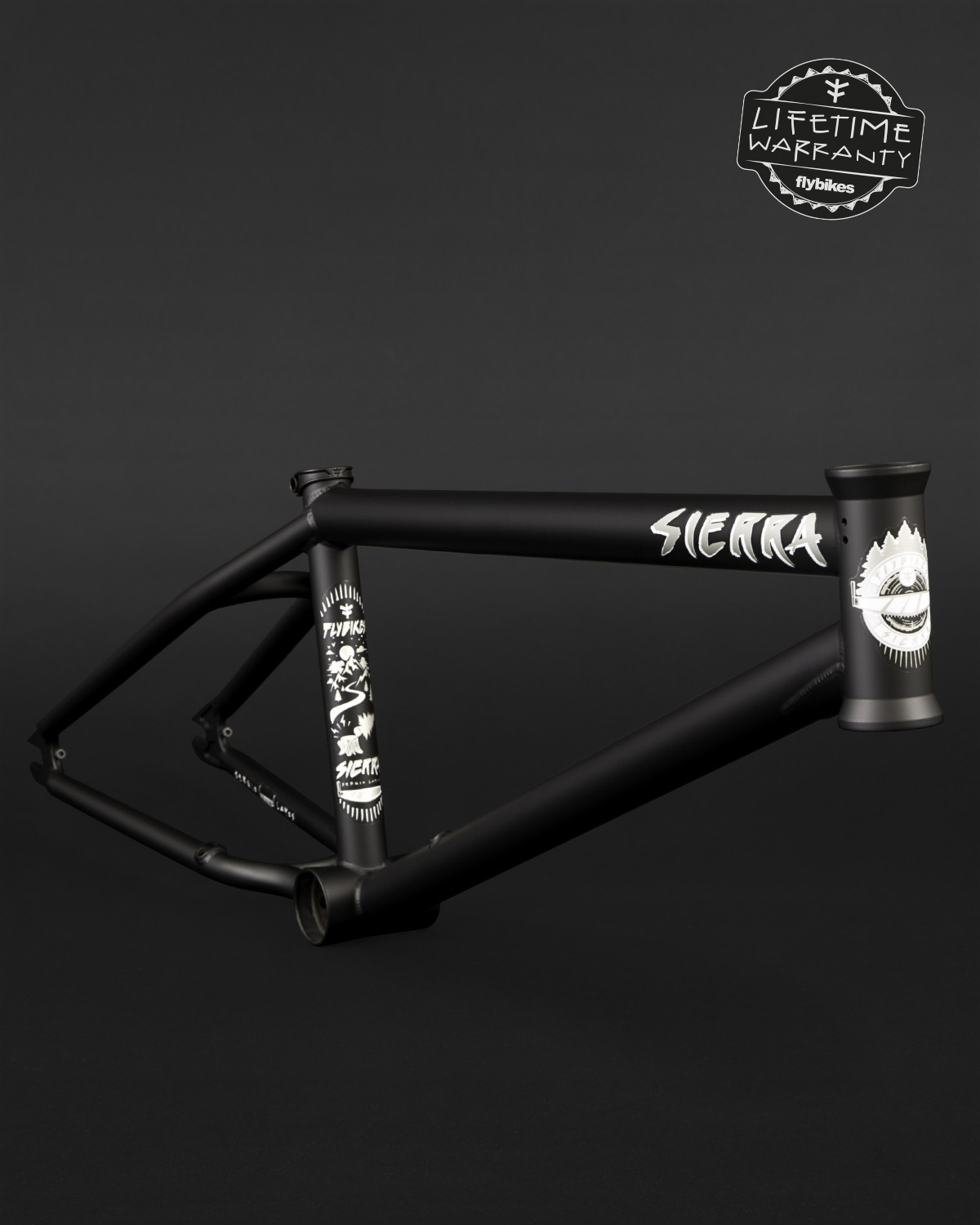

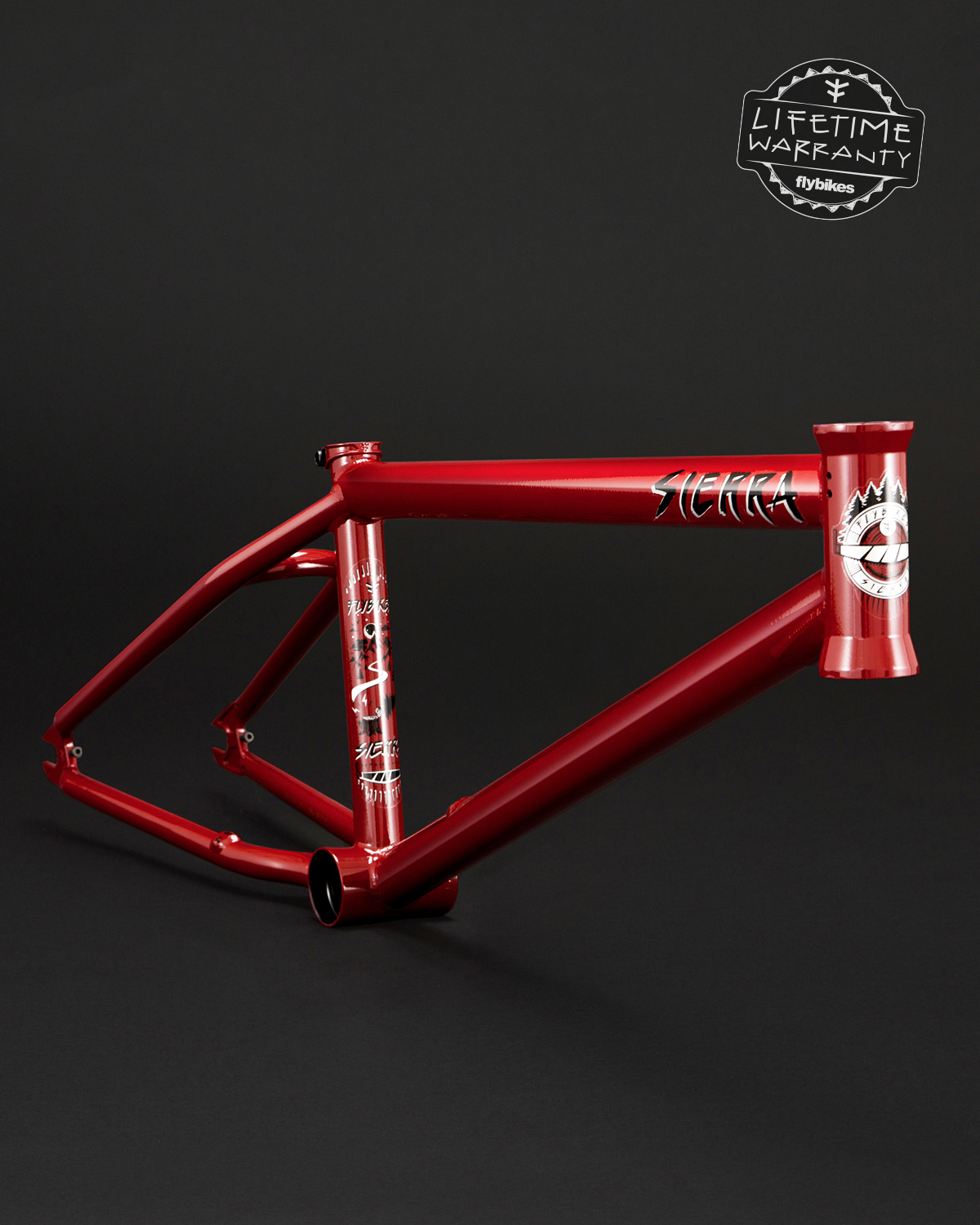

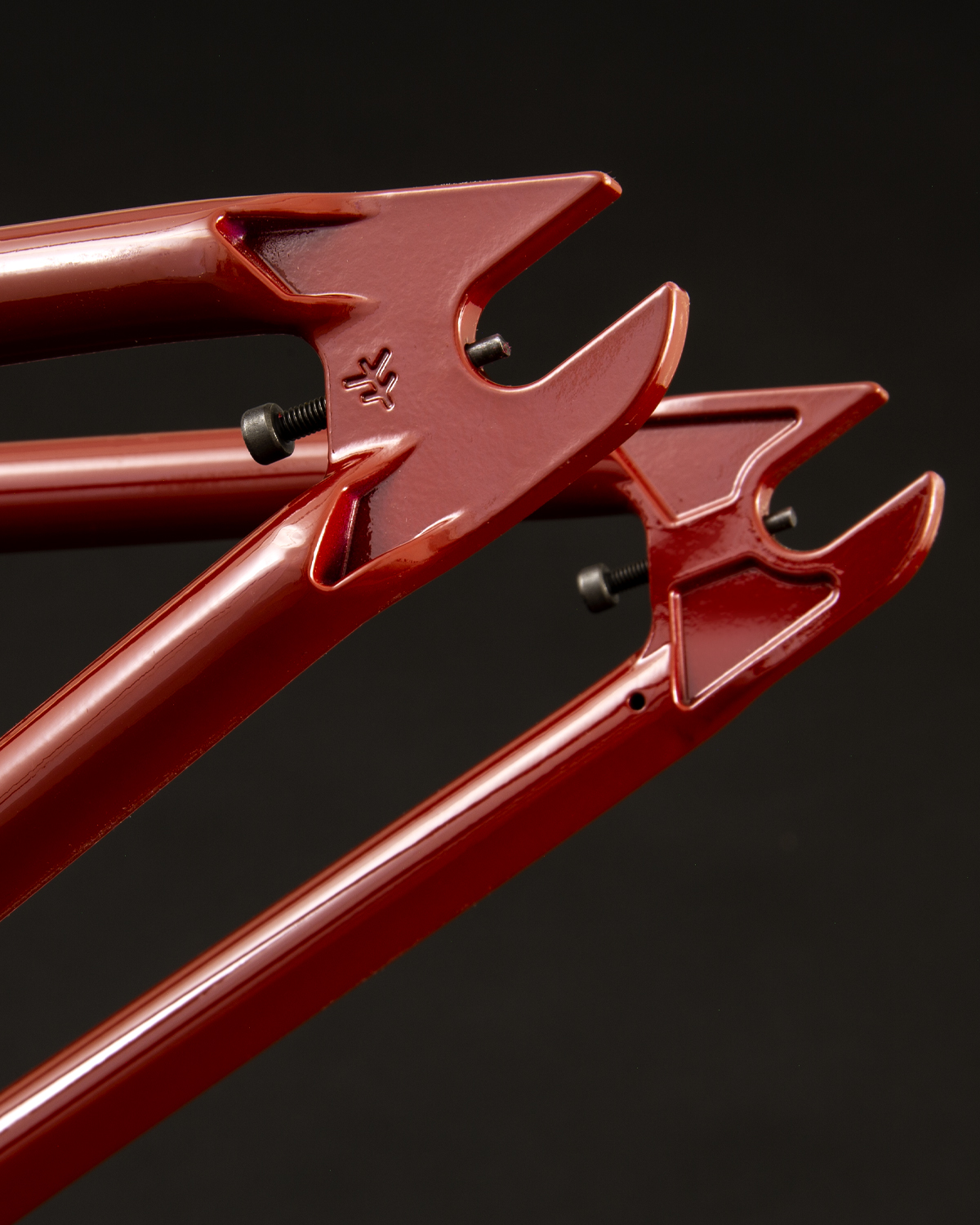

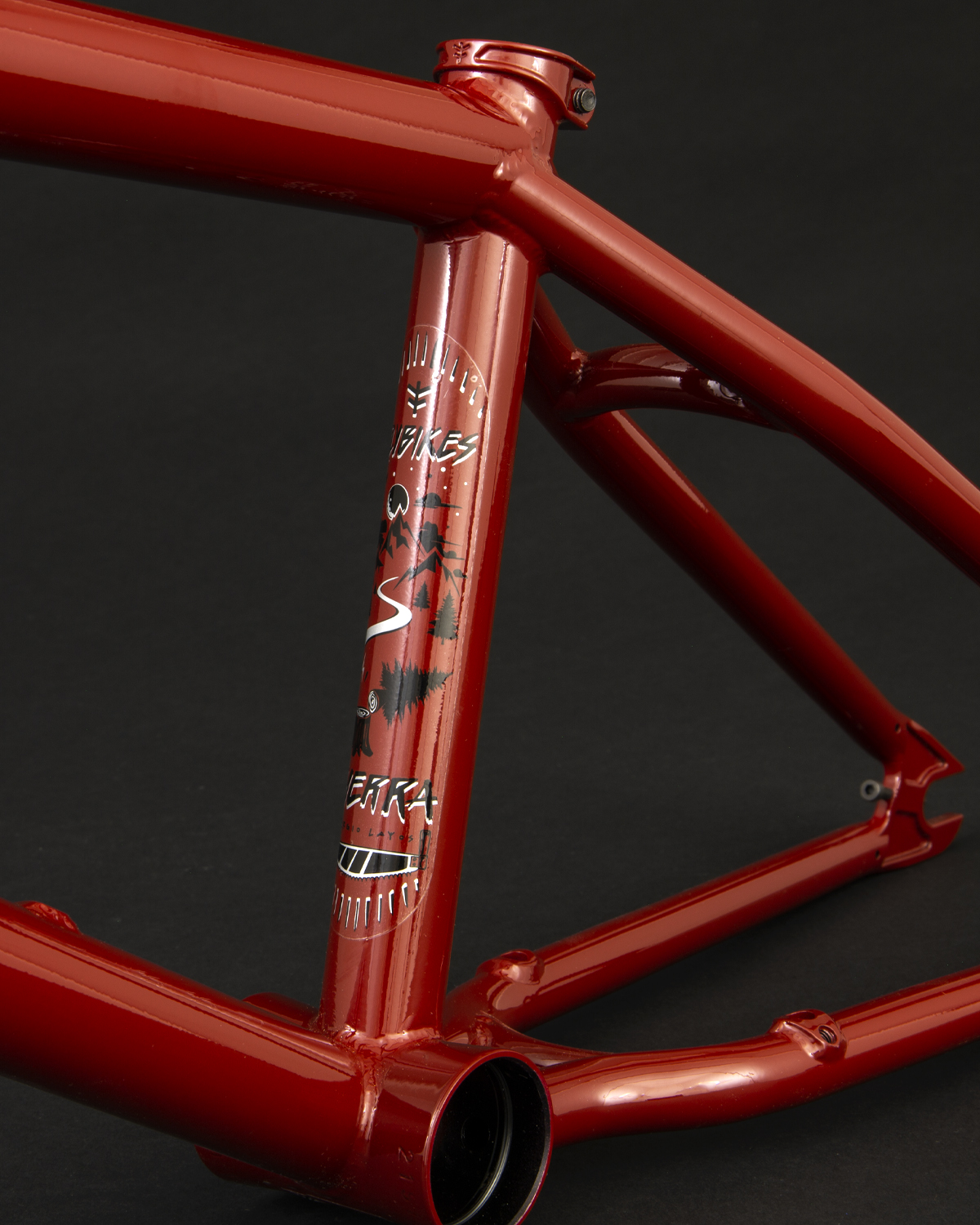

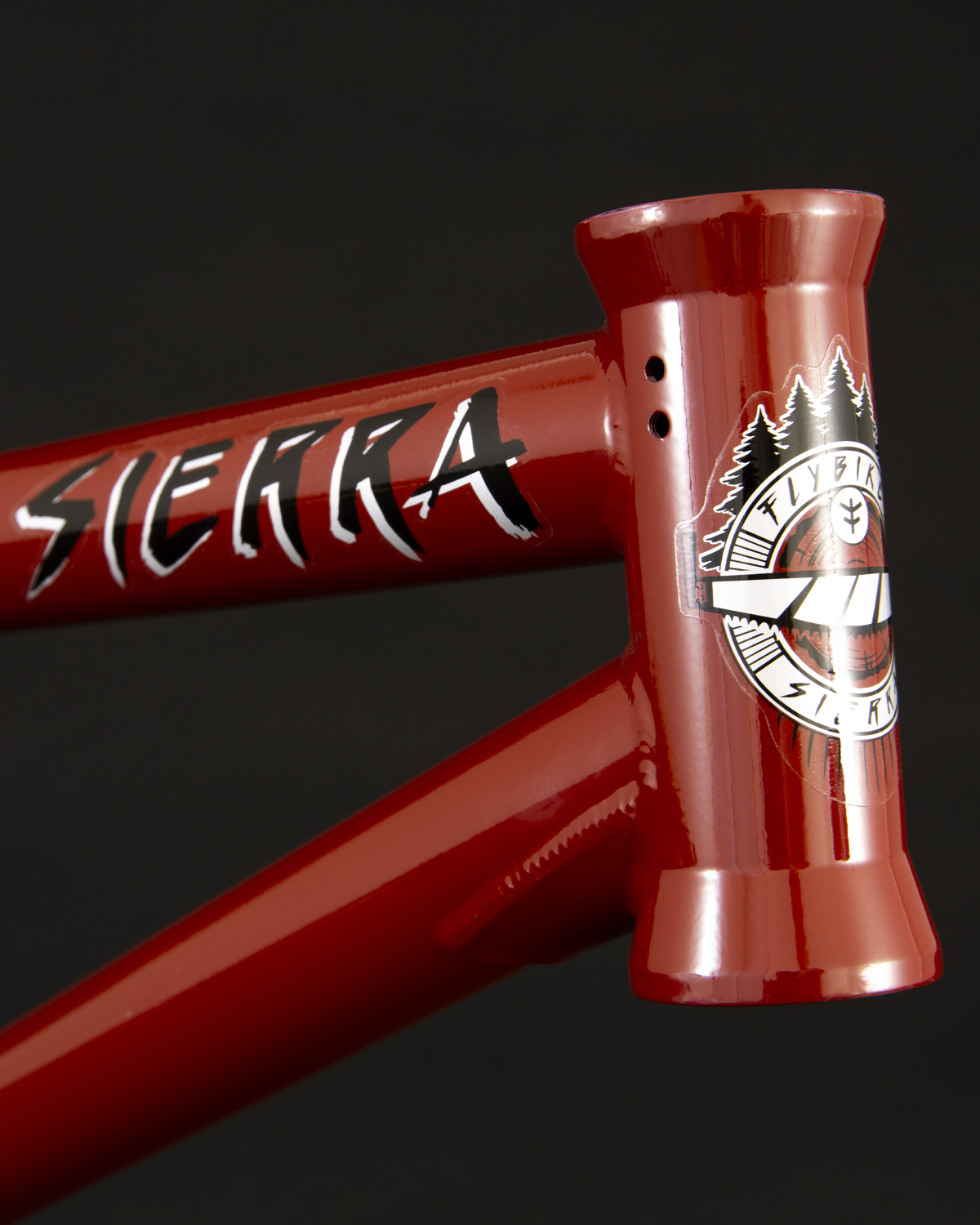

The Sergio Layos' signature Sierra frame features internal and external gussets, multi-butted and tapered tubing, an Investment Cast seat post clamp with the Horizontal Cut System, removable EBS style brake mounts and Investment Cast Dropouts with integrated chain tensioners.

• This product is covered with Lifetime Warranty.
• EBS Brake kit NOT included.
• Replacement stickers included.

SPECIFICATIONS

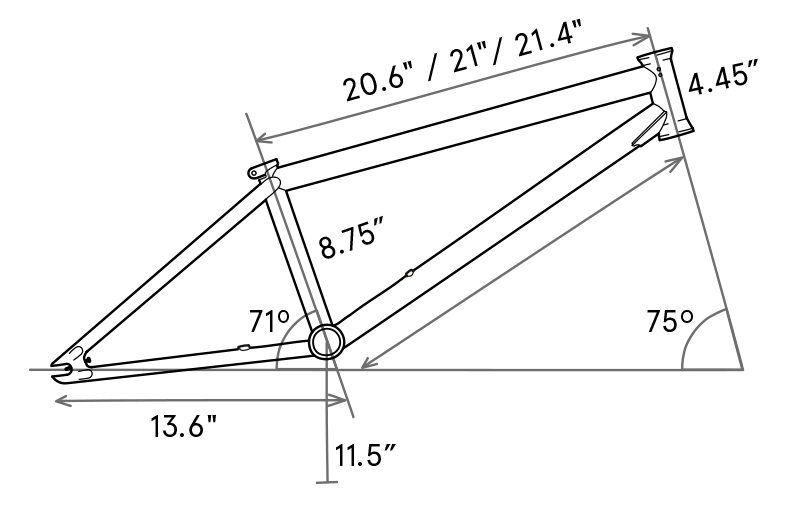

Sierra Frame Specs

Tubing Material

4130 CrMo / Japanese Sanko Triple Butted
Headtube Material

CNC Machined / 4130 CrMo / Heat Treated
Bottom Bracket

CNC Machined / 4130 CrMo / Heat Treated / Mid BB
Dropouts Material

Invest Casting / 4130 CrMo / Heat Treated
Seat Clamp Material

Invest Casting / 4130 CrMo / Heat Treated
Seatstays Bridge Material

Invest Casting / 4130 CrMo / Heat Treated
Top Tube

20.6" / 21" / 21.4"
Head Tube

75º
Seat Tube

71º
Rear End

13.6"
Standover

8.75"
Bottom Bracket Height

11.5"
Head Tube Length

113 mm / 4.45"
Brake System

EBS / Chainstays
Weight 21"

2.200 kg / 4.85 lb
